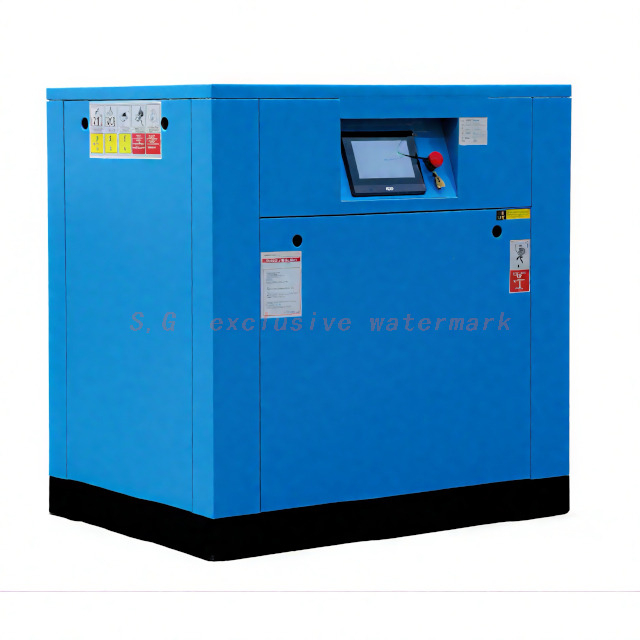

VSD PM INTEGRATED COMPRESSOR JZV SERIES

The JZV Series VSD PM Integrated Compressor integrates a permanent magnet synchronous motor, variable - speed drive technology, and direct - drive design. It achieves 35–50% energy savings through intelligent speed adjustment, maintains discharge pressure stability within ±0.1 bar, and offers a compact structure. Ideal for manufacturing, automotive, and construction industries needs for efficient, stable compressed air supply.
  • VSD PM INTEGRATED COMPRESSOR JZV SERIES

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


VSD PM INTEGRATED COMPRESSOR JZV SERIES


Model10A15A20A25A30A40A50A60A
Parameter









Exhaust volunme
Exhaust pressure
m³/min/Mpa
1.2/0.71.65/0.72.5/0.73.2/0.73.8/0.75.3/0.76.8/0.77.4/0.7
1.1/0.81.5/0.82.3/0.83.0/0.83.6/0.85.0/0.86.2/0.87.0/0.8
0.95/1.01.3/1.02.1/1.02.7/1.03.2/1.04.5/1.05.6/1.06.2/1.0
0.8/1.251.1/1.251.9/1.252.4/1.252.7/1.254.0/1.255.0/1.255.6/1.25
0.75/1.551.0/1.551.7/1.552.2/1.552.5/1.553.8/1.554.7/1.555.4/1.55

Lubricating oil quanitity
47 .51430
Noice  dB(A)66±268±2
Driving modeCoaxial direct coupling
Power380V/50Hz

Power Supply
7 .5111518.522303745

Startup mode
Frequency conversion star
exterior dimensionL    mm850100010601200
W  mm670700790950
H   mm870100011701300
weight [Kg]
133206288336439
Pipe diameterG1G1-½


VSD PM INTEGRATEDCOMPRESSOR JZV SERIES


Model75A100A120A150A175A200A250A300A350A
Parameter

Exhaust volunme
Exhaust pressure
m³/min/Mpa
10/0 .713.4/0 .716.2/0 .721/0 .724.5/0 .728.7/0 .732/0 .736/0 .742/0 .7
9.6/0 .812.6/0 .815.0/0 .819.8/0 .823.2/0 .827.6/0 .830.4/0 .834.3/0 .840.5/0 .8
8.5/ 1 .011.2/ 1 .013.8/ 1 .017.4/ 1 .020.5/ 1 .024.6/ 1 .027.4/ 1 .030.2/ 1 .038.2/ 1 .0
7.6/ 1 .2510/ 1 .2512.3/ 1 .2514.8/ 1 .2517.4/ 1 .2521.5/ 1 .2524.8/ 1 .2527.7/ 1 .2534.5/ 1 .25

Lubricating oil quanitity
657290110120135150
Noice   dB(A)72±275±2


Driving mode
Direct link
Power380V/50Hz
Power Supply557590110132160185220250
Startup modeFrequency conversion star
exterior dimensionL mm18001900230026503600
W mm12301230147016502100
H mm15701570184020452190
weight [Kg]
93210141143166318502800300035003700
Pipe diameterG2G2-½DN100
