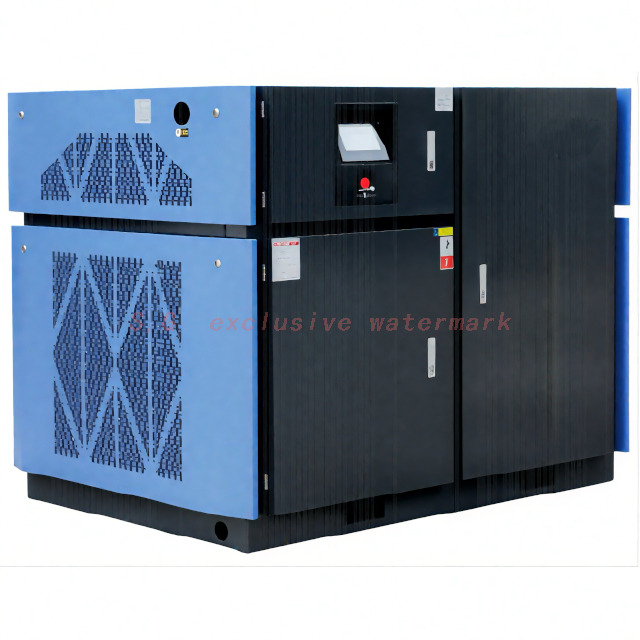

VSD PM HORIZONTAL TWO-STAGE COMPRESSOR JESV SERIES

The JESV Series VSD PM Horizontal Two-Stage Compressor integrates variable speed drive (VSD), permanent magnet (PM) motor technology, and a horizontal two-stage screw airend, delivering exceptional efficiency for industrial applications. Its two-stage compression reduces single-stage pressure ratio, minimizing internal leakage and boosting volumetric efficiency, while VSD-PM integration enables intelligent speed adjustment to match real-time air demand, cutting energy consumption by up to 40–55% compared to fixed-speed single-stage models. The horizontal structure optimizes space utilization and operational stability, making it ideal for manufacturing, petrochemical, and heavy industries requiring continuous, high-pressure air supply with maximum energy savings.
  • VSD PM HORIZONTAL TWO-STAGE COMPRESSOR JESV SERIES

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


VSD PM HORIZONTAL TWO-STAGE COMPRESSOR JESV SERIES


Model30A50A60A75A100A120A150A175A
Parameter








Exhaust volunme3.9/0.76.9/0.78.9/0.711.2/0.715.0/0.720.0/0.722.0/0.726.0/0.7
Exhaust pressure3.8/0.86.8/0.88.8/0.811.0/0.814.8/0.819.9/0.821.2/0.825.8/0.8
m³/min/Mpa3.5/1.06.5/1.07.8/1.09.8/1.012.9/1.017.9/1.019.8/1.023.5/1.0
Lubricating oil quanitity16.545455055656570
Noise dB(A)68±272±275±2
Driving modeCoaxial direct coupling
Power380V/50Hz
Power Supply223745557590110132
Startup modeFrequency conversion star
Exterior dimensionL mm125414541754185419142454
W mm90011001200130013001500
H mm119013001550155016001840
weight [Kg]4505809259701170174617501790
Pipe diameterG1G1-½G2G2-½
