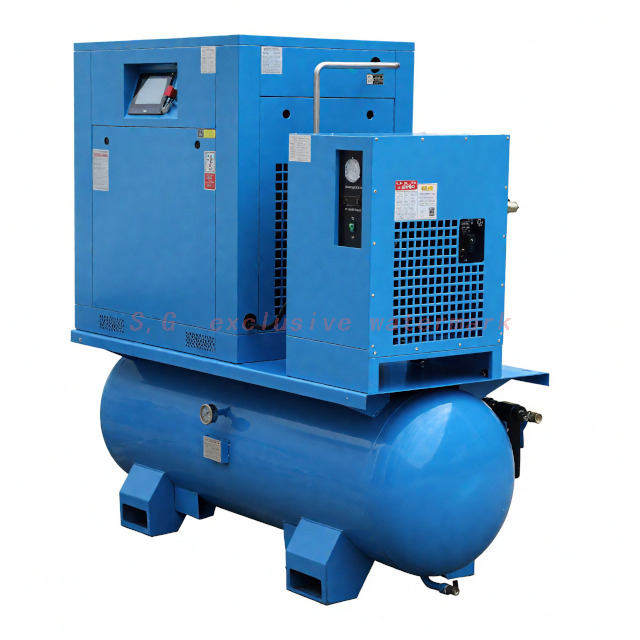

QJZV SERIES VSD PM COMPRESSOR FOR LASER CUTTING

The QJZV Series VSD PM Compressor is specifically engineered for laser cutting applications, combining variable speed drive (VSD) and permanent magnet (PM) motor technology to deliver precise, energy-efficient compressed air. Optimized for the strict demands of laser cutting—where stable pressure and clean air directly impact cut quality—it maintains consistent airflow with minimal pressure fluctuation, while the PM-VSD system reduces energy consumption by 30–45% compared to standard compressors. Its advanced filtration ensures oil-free, moisture-free air to protect laser optics and prevent defects in cutting results, making it ideal for fiber laser, CO₂ laser, and high-power laser cutting machines in metal fabrication and manufacturing.
  • QJZV SERIES VSD PM COMPRESSOR FOR LASER CUTTING

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


QJZV SERIES VSD PM COMPRESSOR FOR LASER CUTTING


ModelQJZV10AQJZV15AQJZV20AQJZV30AQJZV40A
Parameter
Exhaust volunme Exhaust pressure   m³/min/Mpa0.70/1.31.20/1.31.70/1.32.60/1.33.60/1.3
0.48/1.551.0/1.551.50/1.552.20/1.553.20/1.55
Lubricating oil quanitity3.57 .51214
Noice  dB(A)6870
Driving modeDirect link
Power380V/50Hz
Power Supply7 .511152230
Startup modeFrequency conversion star
Exterior dimensionL mm1670167022802280
W mm850850930930
H mm1570157019201920
Weight [Kg]516556596806856
Pipe diameterG1
