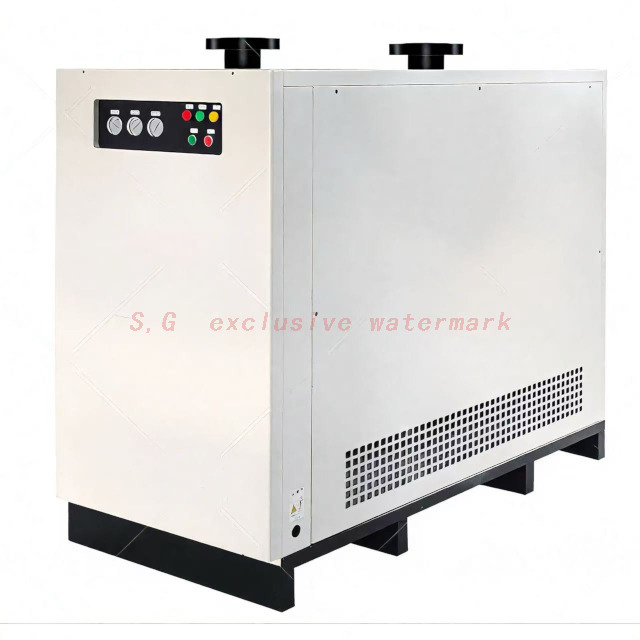

ND-W Water-cooled normal temperature refrigerated dryer

The ND-W Water-cooled Normal Temperature Refrigerated Dryer is engineered to efficiently remove moisture from compressed air in industrial systems, combining water-cooled technology for superior heat dissipation with a normal-temperature output design to prevent excessive cooling and pipe condensation. Its refrigeration system lowers air temperature to condense and separate water vapor, while the water-cooled condenser ensures stable performance even in high-ambient-temperature environments—ideal for factories, workshops, and production lines requiring consistent, dry compressed air without extreme temperature drops. With reliable moisture removal and energy-efficient operation, the ND-W Series delivers clean, dry air to protect pneumatic equipment and maintain production quality.
  • ND-W Water-cooled normal temperature refrigerated dryer

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


ND-W Water-cooled normal temperature refrigerated dryer


VolumeDimensionsPowerInlet/Output connectionCooling water capacityWeight
Model No.Capacity(KW)(kg)

M³/minWidthLengthHeight
Air inletAir inletM³/hr
ND-145W14.5650137011002.73G2-'₂"G1"3238
ND-180W18650137011004.57G2-'/2"G1"3.8250
ND-250W25770154013004.57DN80G1"4.5255
ND-300W30770154013005.46DN80G1"5362
ND-365W36.5790176014307.93DN80G1-'/₂"6452
ND-400W40790176014309.08DN80G1-'/₂"6.5468
ND-450W45965182015509.08DN100G1-'/₂"7.6570
ND-500W50965182015509.08DN100G2"9.8595
ND-550W559652010159011.2DN125G2"10.9780
ND-600W609652010159011.2DN125G2"10.9815
ND-650W6513502590192014.83DN125G2"14.8910
ND-750W7513502590192014.83DN125G2"14.81050
ND-800W8014202500200018.5DN125G2"15.21150
ND-900W9015002900206518.5DN150G2"18.11410
ND-960W9615002900206518.5DN150G2"18.11460
ND-1080W10815002900210018.5DN150G2-¹/₂"18.11520
ND-1260W12616003100210021.8DN150G2-¹/₂"201640
ND-1800W18016003200235033DN200G3"281890
ND-2400W24016003700280056.5DN200G3"402285
ND-3000W30018003850285064DN250G3"452740
Note:Actual size and weight may vary slightly
