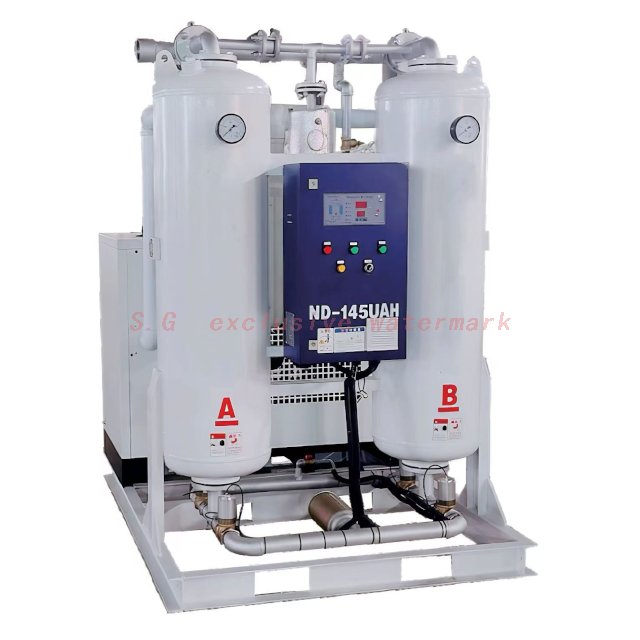

ND-UARDH/ND-UWRDH Air-cooled/water-cooled micro-heat regeneration combined dryer

The ND-UARDH (air-cooled) and ND-UWRDH (water-cooled) Series are micro-heat regeneration combined dryers, engineered to deliver ultra-dry compressed air through a hybrid design that integrates preliminary moisture removal with deep adsorption drying. Utilizing micro-heat regeneration technology—where a small amount of heat revitalizes desiccants—they achieve low dew points (-40℃ to -70℃) with lower energy consumption than traditional heatless or hot regeneration systems, while offering air-cooled or water-cooled options to suit diverse industrial environments. Ideal for industries requiring high-purity compressed air (such as electronics, pharmaceuticals, and precision manufacturing), these combined dryers ensure minimal moisture, protecting sensitive equipment and maintaining product quality with reliable, efficient performance.
  • ND-UARDH/ND-UWRDH Air-cooled/water-cooled micro-heat regeneration combined dryer

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


ND-UARDH/ND-UWRDH Air-cooled/water-cooled micro-heat regeneration combined dryer


VolumeDimensionsVoltage requiement/voltageInlet/Output connectionWeight
Model No.Capacity(kg)

M³/minWidthLengthHeightAir inletCooling water outlet
ND-707.0145096018504.8/3PH380VG1-½"/460
ND-10610.61560130019205.62/3PH380VG2-½"/658
ND-14514.51800138020409.23/3PH380VG2-½"/880
ND-1801818001380215014.03/3PH380VDN65G1"1060
ND-2502522001610240018.58/3PH380VDN80G1-'/₂"1360
ND-3003022001610244019.48/3PH380VDN80G1-'/₂"1530
ND-36536.522001800248022.95/3PH380VDN80G1-'/₂"1760
ND-4004022001800258025.95/3PH380VDN80G1-'/₂"1856
ND-4504523002300252032.13/3PH380VDN100G1-'/₂"2060
ND-5505525802300269035.31/3PH380VDN125G2"2480
ND-6506527502450288040.03/3PH380VDN125G2"3160
ND-7507529002600296043.13/3PH380VDN125G2"3140
ND-8508532602850298043.13/3PH380VDN125G2"3700
ND-9609638802960315056.8/3PH380VDN150G2-'/₂"4320
ND-108010838802960325059.93/3PH380VDN150G2-'/₂"4900
1. Low dew point: -40~-60°C or ≤ -70°C can be customizzed;
2. Convertional model: 7~14.5 m³/min only for air cooling;
3. Convertional type: The air cooled and water cooled dryer is open type system from 75 m³/min;
4. The caliber "G" indicates the British tube thread connection, and "DN" indicates flange connection;
5. Actual size and weight may vary slightly;
