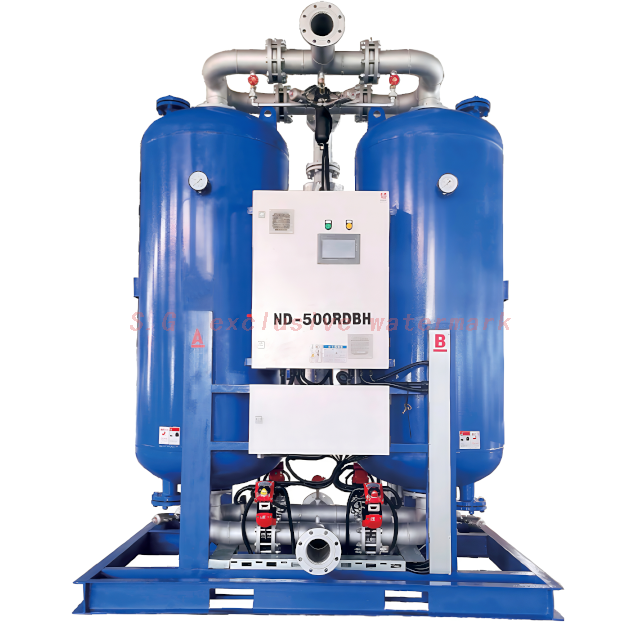

ND-RDBH Low air consumption blast external heating regeneration adsorption dryer

The ND-RDBH is a low air consumption adsorption dryer featuring blast external heating regeneration, engineered to deliver ultra-dry compressed air with minimal energy waste. Utilizing high-performance adsorbents to trap moisture, it achieves deep drying (dew points down to -40℃ to -70℃) critical for sensitive industrial processes, while its external heating and blast regeneration design significantly reduces purge air consumption compared to traditional heatless models—cutting operational costs and conserving compressed air. Ideal for electronics, pharmaceuticals, and precision manufacturing where ultra-dry air is essential, the ND-RDBH combines deep drying capability with energy efficiency, ensuring reliable protection for equipment and processes.
  • ND-RDBH Low air consumption blast external heating regeneration adsorption dryer

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


ND-RDBH  Low air consumption blast external heating regeneration adsorption dryer


VolumeDimensionsInlet/Output connectionPower supplyWeight(kg)
Model No.Capacity

M³/minWidthLengthHeightPower(KW)Voltage
ND-145RDBH14.5126015802380G2-½"9.253ph
380V/50HZ
950
ND-180RDBH18135016502400G2-½"或DN6511.91200
ND-250RDBH25145017802510DN8016.51600
ND-300RDBH30150018602750DN8018.51800
ND-365RDBH36.5160019002750DN8023.82150
ND-400RDBH40165019902750DN8023.82250
ND-450RDBH45168021002890DN10028.22390
ND-500RDBH50170022002920DN10028.22650
ND-550RDBH55170022002920DN12529.82800
ND-600RDBH60178023002986DN12529.83100
ND-650RDBH65186023002986DN12529.83300
ND-750RDBH75190024003100DN12534.53450
ND-800RDBH80190024503100DN12534.53700
ND-900RDBH90195024503150DN150563850
ND-960RDBH96195026003150DN150564000
ND-1080RDBH108195026003150DN150564300
ND-1260RDBH126212028403200DN150604950
ND-1600RDBH160230032003200DN20067.56500
1. Low dew point: -40~-60°C or ≤-70°C can be customized;
2. Conventional dew point type: all are air-cooled;
3. Low dew point or ultra-low dew point type can reduce the regeneration air volume if equipped with an ice water heater;
4. The caliber "G" indicates the British tube thread connection,and "DN" indicates the nominal diameter of the flange connection tube;
5. Actual size and weight may vary slightly;
