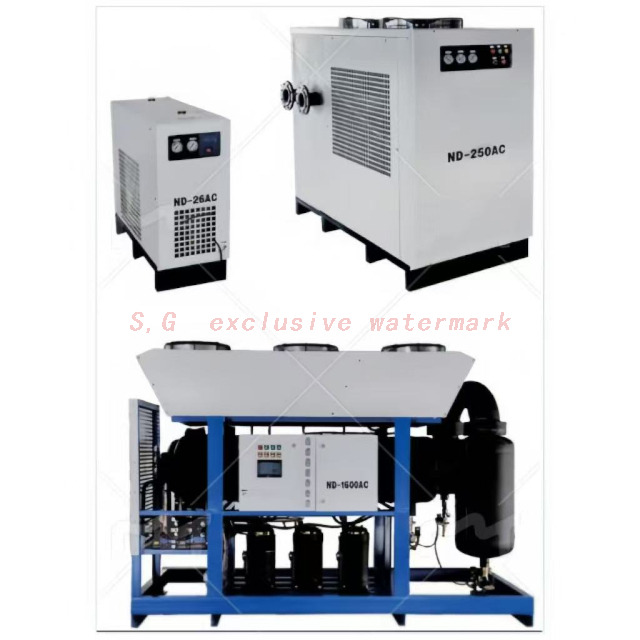

ND-AC Specifications of air-cooled high-temperature refrigerated dryer

The ND-AC Air-Cooled High-Temperature Refrigerated Dryer is specifically designed to remove moisture from high-temperature compressed air (typically handling inlet temperatures above 60℃) in industrial settings, utilizing air-cooled technology for flexible installation without water supply requirements. Its robust refrigeration system efficiently condenses and separates water vapor even in hot ambient conditions, ensuring consistent dew point performance to protect pneumatic equipment from corrosion and damage. Ideal for factories, foundries, and high-heat production lines where compressed air temperatures are elevated, the ND-AC Series delivers reliable, low-maintenance moisture control with the convenience of air cooling—no complex water piping needed.
  • ND-AC Specifications of air-cooled high-temperature refrigerated dryer

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


ND-AC Specifications of air-cooled high-temperature refrigerated dryer

Model No.Volume CapacityDimensionsInlet/Output connectionWeightPowerFanVoltage
(kg)(KW)direc


-tion

M³/minWidthLengthHeight




ND-13AC1.3300740700G³/4"600.73



Sideφ2

220V

~

240V

50HZ
ND-18AC1.8300740700G³/4"600.73

ND-26AC2.6360860830G1"660.85

ND-38AC3.8360860830G1-'I2"711.05

ND-70AC7500970940G1-'I₂"1231.5

ND-106AC10.660010401100G2-¹/₂"1582.31







top
ND-145AC14.564013701100G2-¹1₂"2363.2

ND-150AC1564013701100G2-'/₂"2523.6








φ3
380V
50HZ
440V
60HZ
ND-180AC1864013701100G2-'/₂"2575

ND-210AC2177015401300DN803505.08

ND-250AC2577015401300DN803605.08

ND-300AC3077015401300DN803685.95

ND-365AC36.579017801430DN804657.95

ND-400AC4079017801430DN804759.6

ND-450AC4596518201550DN1006279.6

ND-500AC5096518201550DN10064510

ND-550AC5596520101590DN12575012.6

ND-650AC65235013501680DN125112016

ND-800AC80135026001950DN12598019.1





open
ND-960AC96150029602155DN125125019.1

ND-1080AC108150029602155DN150148019.4

ND-1260AC126160031002230DN150165023.2

ND-1500AC150165032002385DN200165037

ND-1800AC180165032002385DN200178046.5

Note:Actual size and weight may vary slightly
