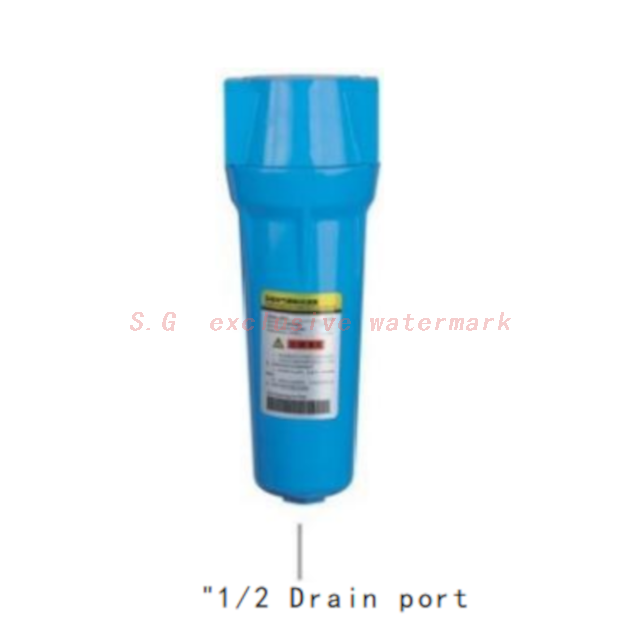

Compressed Air Precision Filter (Interchangeable 015–060 Series)

This robust series of industrial-grade compressed air filters is engineered to protect your pneumatic systems and end products. It efficiently removes damaging contaminants like water, oil, dust, and odors, ensuring clean, dry, and high-quality air. Built with a durable aluminum and carbon steel housing to withstand pressures up to 1.0 M Pa, it offers a reliable and cost-effective solution for a wide range of applications from manufacturing to food processing.
  • OMT-015-20 , OMT-015-25 , OMT-035-40, OMT-060-40

  • S.G

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Features:


  • Housing & Material: The filter housing is crafted from high - quality aluminum alloy and carbon steel, with a maximum pressure resistance of up to 1.0 MPa. Advanced surface treatment (applied to both internal and external components) ensures superior durability and corrosion resistance, extending service life.

  • Installation & Operation: Clear air flow direction markings on the housing simplify installation. The inlet uses high - efficiency, stable - performance materials. A floating - ball automatic drainage system guarantees unobstructed water flow, reliable operation, and zero resistance.

  • Service Life: Under operating conditions of ≤60°C (maximum temperature) and ≤1.0 MPa (pressure), the filter housing has a service life of 15 years, while filter elements last 6,000–8,000 hours.

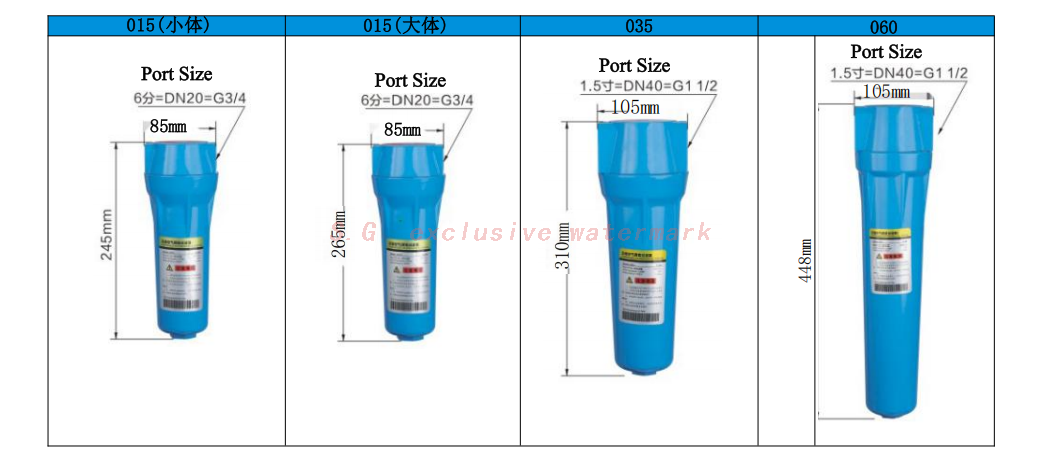

Model Port Size Nm³/min Filter Element Filtration Rating /Precision Operating Pressure Filter Element
OMT-015-20 G ¾ 1.5 015 Q: Main pipeline dust removal
(1μm - 1ppm)
P: Main pipeline water removal
(3μm - 3ppm)
S: Main pipeline oil removal
(0.01μm - 0.011ppm)
H: Activated carbon micro oil mist filter
(0.01μm - 0.003ppm)
0.1~1MPa 0613e423-813b-4dca-8612-cef4d80e3167
OMT-015-25 G1 1.5 015
OMT-035-40 G1 ½ 3.5 030
OMT-060-40 G1 ½ 6 060

微信图片_20250821141335_777
